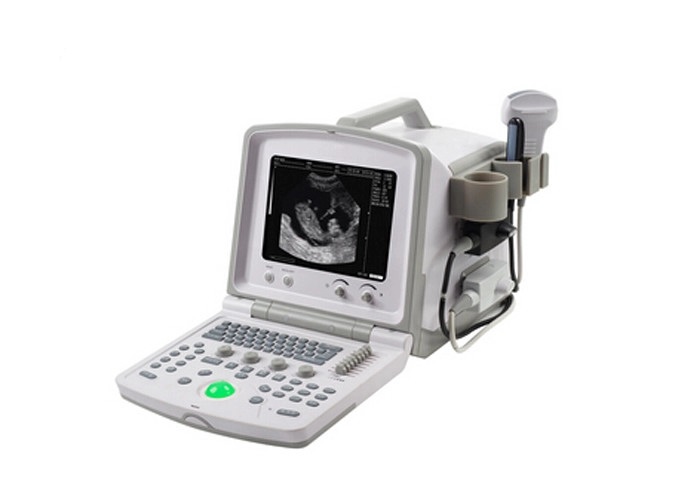

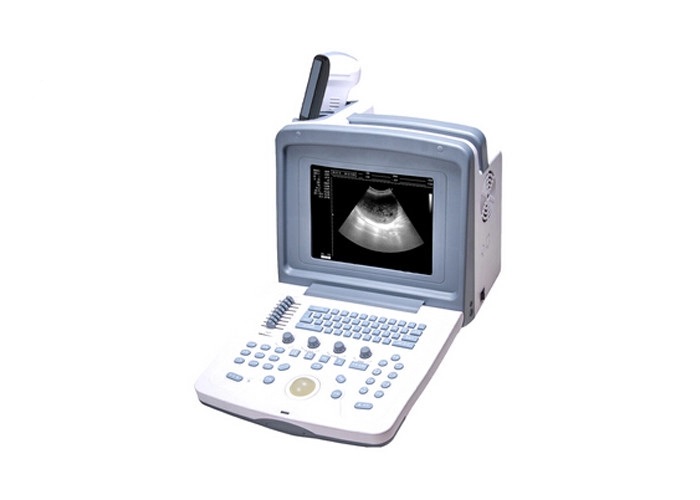

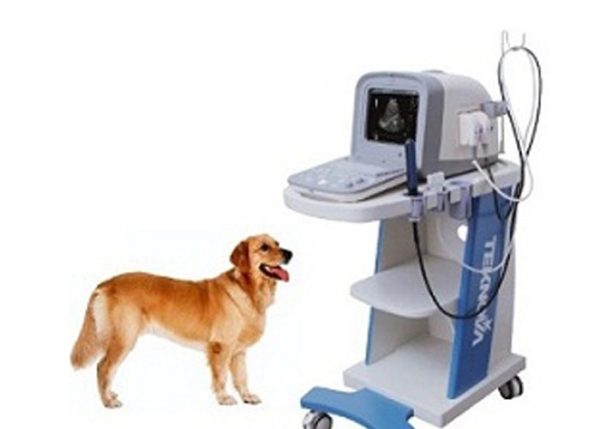

Portable Full Digital Veterinary Ultrasound Scanner For Cattle Caw Dog Animal
Product Details:
| Place of Origin: | Guangzhou China |
|---|---|
| Brand Name: | GOLGATHA |
| Certification: | CE/ISO |
| Model Number: | GGT – 3016 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | The price is negotiable |
| Packaging Details: | Conventional packing |
| Delivery Time: | 1-30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1-1000000 PCS per month |
Product Description
| Display: | 15” Touch Screen | Transducer Frequency: | 2-11Mhz |
|---|---|---|---|
| Scanning Depth: | 300mm | Power Supply: | AC 100-240V 50/60HZ <80VA |
| Net Weight: | Approximately 3.0kg | Gross Weight: | Approximately 5.0kg |
| High Light: |
medical ultrasound machine, hospital ultrasound machine |
||
Portable Full Digital Vet Ultrasound Scanner for Animal
| B&W mode | B,M,2B,B/M,4B |
| Gray scale | 256 |
| Display | 15” Touch Screen |
| Transducer frequency | 2-11Mhz |
| Digital technology |
Wide-angle imaging
Panoramic focusing technology
Rolling M technology
|
| Scanning depth | 300mm |
Imaging Processing
| Pre-processing |
Cloud processing technology
8-segment TGC
Gain(B&W)
Dynamic range
Persisitence
M Soften
Noise suppression
|
| Post-processing |
Image enhancement
Gray Map
Colorize Map
Tissue Specific Imaging
Left/right reverse
Up/down reverse
|
Functions:
| Cine-loop | 334 frame cine loop memory |
| USB ports | 2 |
| Zoom | Pan zoom |
| THI | Tissue Harmonic Imaging |
| DICOM 3.0 | DICOM 3.0 |
| Permanent storage | 1024 |
Measurement & Calculations
| B mode | Distance, angle, area, volume, trace length, distance ratio |
| M mode | Distance, time, slope, HR |
| Software packages | Abdomen, OB, gynecology, small Part |
Others
| Transducer connector | 2 active transducer connector ports |
| Peripheral ports |
Video,2 USB ports,1 networking port,1 power inlet,
1 equipotential terminal
|
| Power supply | AC 100-240V 50/60HZ <80VA |
| Dimensions(main unit) | 358mm(W)´366mm (L)´65mm (H) |
| Packing dimensions | 378mm(W)´376mm(L)´85mm(H) |
| Net weight | Approximately 3.0kg |
| Gross weight | Approximately 5.0kg |
Our Advantage :
1: For all your inquires about us or our products , we will reply you in detail within 24 hours.
2: We own professional team have professional attitude to recommend products and services.
3: One year free warranty , after it is still providing after-sales service .
4: We offer OEM services , Can print your own logo on the products .
5: We have very experienced engineers , can help you better use our products .
