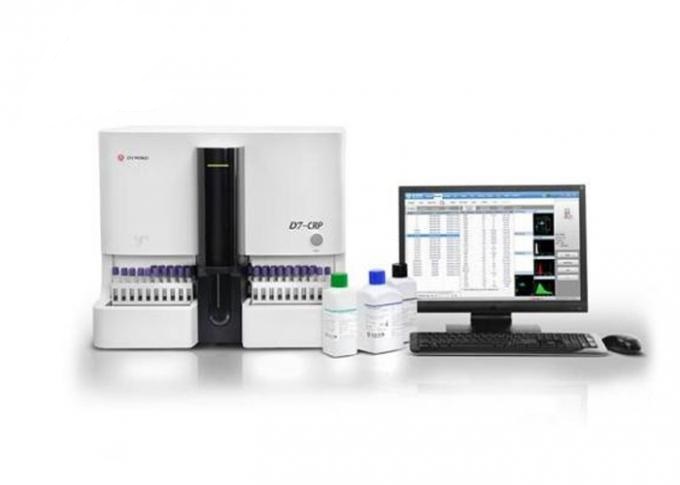

Full automatic blood analyzer
The use of laser technologyBy flow cytometry Blood with less Low reagent costs
Parameters Full auto loader for 50 sample tube capacity80 tests/hrTouch Screen operation28Para+scattergram+3histograms
Dimension 51*60*57cm
Weight 70KG
Product Description
Auto Loader Hematology Analyzer:
Features:Throughput of 80 samples per hour without operator interventionFully auto Cap piercing sampler with 50 samples capacity allowing efficient testingCombined with the Cap Piercing Sampler, the flexible Barcode Reader provides positive sample identification, optimizing laboratory efficiency
Technical Specification
Parameters
19 parameters + 3 histograms
| Whole Blood And Prediluted | 3-Part Differentiation Of Wbc: | 19 Parameters + 3 Histograms | |
|---|---|---|---|
| Prediluted: | 20µl | Whole Blood: | 9-20µl |
| Memory: | 35,000 Results | Origin: | China Guangdong |
| Certification: | CE And ISO | ||
| High Light: |
medical lab equipment, hospital medical equipment |
||
Principle
Electrical impendence for counting and SFT method for HGB
Throughput: up to 80 samples per hour
Sampler capacity: 50 samples
Testing mode: manual open(whole blood,prediluted); sampler close(whole blood)
Sample Volume: Sampler mode: whole blood 200 µL
Manual mode: whole blood 200µL; prediluted 40µL
Aperture Diameter
WBC: 100µm
RBC/PLT: 80µm
Memory: 35,000 results with histogram
Performance:
Parameters Precision CV%
WBC(10 /L) 2.0%
RBC 1.5%
PLT 4.0%
MCV(fL) 0.5%
HGB(g/dL) 1.5%
Display
Large color LCD, displays all parameters result with histogram of WBC, RBC and PLT
Resolution: 800×600
Menu
Count, Sample mode, Review, Quality control, System setting, reference value, System service, Calibration, Copyright, Shutdown
Alert
25 sets of alert message
Input/Output
USB(keyboard,mouse,flash disk), RS232, parallel
Print
Graphic thermal printer with various printing format, optional external printer
Operating Environment
Temperature: 18-30ºC
Humidity: ≤70%
Power Requirement
AC100-240V, 60/50Hz
Dimension
600mm(L)×520mm(W)×570mm(H)
Weight
30Kg

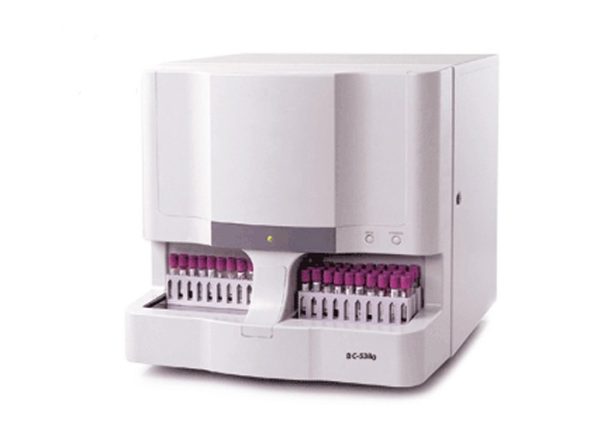

| Auto 5-part diff Hematology analyzer | |
| Prediluted | 20µl |
| Resolution | 800×600 |
| Temperature | 10-35ºC |
| Humidity | ≤70% |
| Power Requirement | AC110-240V, 60/50Hz, 2A |
