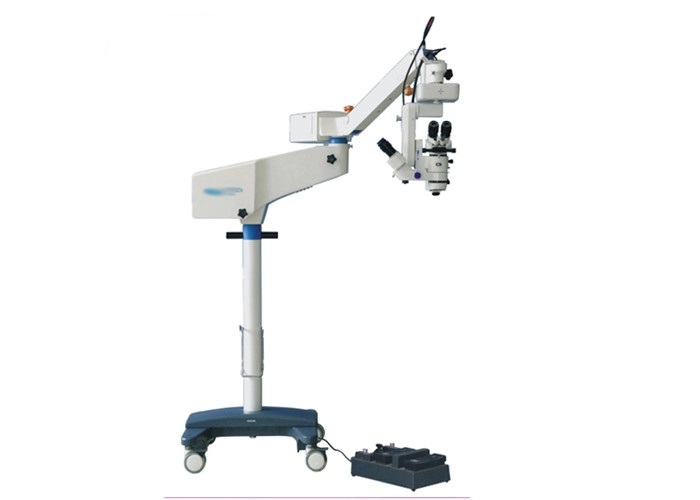

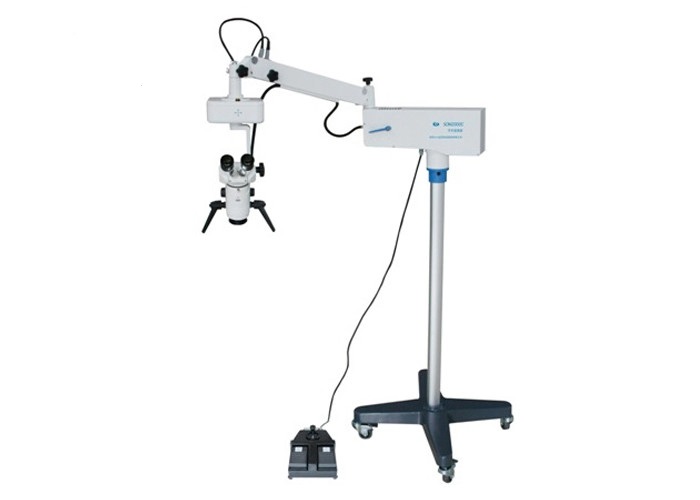

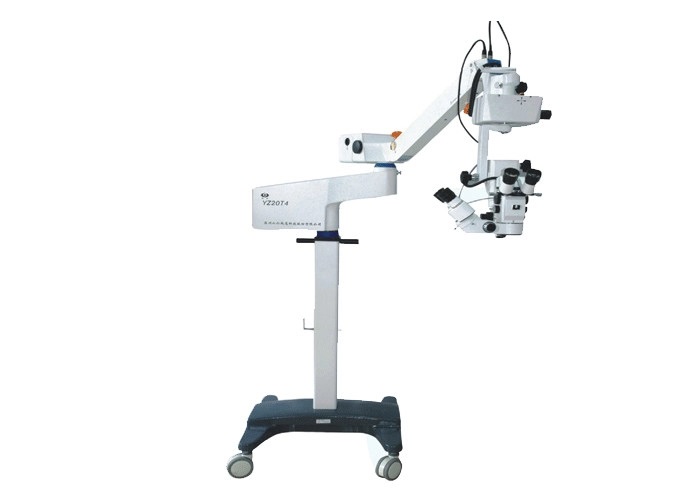

Hospital Ophthalmic Surgical Microscope For Operating With Adjustable Slit Width
Product Details:
| Place of Origin: | Guangzhou China |
|---|---|
| Brand Name: | GOLGATHA |
| Certification: | CE / ISO |
| Model Number: | GGT – 14012 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | The price is negotiable |
| Packaging Details: | Standard packing |
| Delivery Time: | 1-30 days |
| Payment Terms: | TT |
| Supply Ability: | 0-10000 |
Product Description
| Theory: | Biological Microscope | Drawtube: | Binocular |
|---|---|---|---|
| Eyepiece Magnification: | 12.5*/18B | Objective Lens: | F=200 |
| Diopter Adjustmment: | ±7D | Pupil Distance: | 50mm~75mm |
| Maximal Resolution: | 119 LP/mm | Designation: | Operation Microscope |
| High Light: |
ophthalmic surgical instruments,instruments used in ophthalmology |
||
YZ20T9 Hospital Ophthalmic Equipment Operation Microscope
| Features |
| 1 . Advanced apochromatic technology and unique optical balanced technology effectively improves the binocular visual fusions, strengthenes in third dimension and reduces surgeon’s tireness during operations.
2 . Fine focusing knob is under the bottom of assistant binocular. The observation of the 4 . For ophthalmic use |
| Specification |
| Eyepiece Magnification: 12.5×/18B |
| Objective Lens: f=200 |
| Working Distance: 190mm |
| Magnifications for Main Microscope: 4×,6×,10×,16×,25× |
| Magnifications for Assistant Microscope: 6×,10×,14× |
| Diameter of Field: 58mm,38mm,23mm,14mm,9mm |
| Diopter Adjustment: ±7D |
| Pupil Distance: 50mm~75mm |
| Maximal Resolution: 119 LP/mm |
| Focusing Range for Assistant Microscope: ≥30mm |
| Illumination Source: 12V/100W,Cold Reflection Halogen |
| Bulb for Medical Use Illumination Type: 6°+0°coaxial illumination of cold light source and 20° Oblique Illumination (It can be used as slit illumination) Slit Width is adjustable |
| Coaxial Illumination: ≥50000lx |
| Reaching Radius of Arm: 1240mm |
| Adjustable Vertical Range: 850mm~1350mm |
| Fine Focusing Speed and Range: ≤2mm/s,≥50mm |
| Speed for X/Y and Range: ≤2mm/s,50mm×50mm |
| Input Voltage: AC220V±22V/50Hz±1Hz, AC110V± 11V/60Hz±1Hz: |
| Fuse :AC250V T4.0A,AC125V T8.0A |
| Electrical Safety Standard: Executive standard :GB9706.1-2007, |
| Class I Packing Volume: 0.786m3, 5cartons |
| Total Weight : 213kg |
