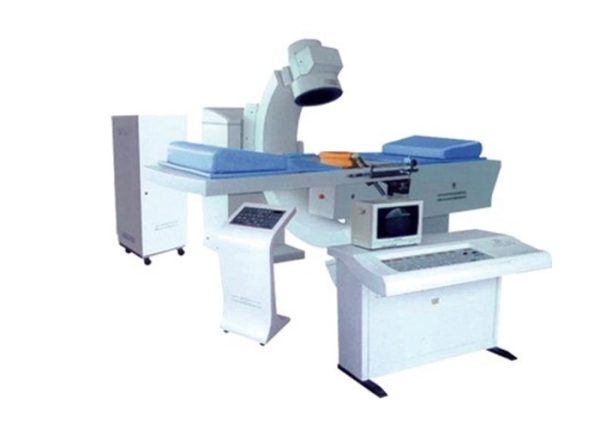

Non Invasive Kidney Stone Treatment Instrument Shock Wave Lithotripsy Machine
Product Details:
| Place of Origin: | Guangzhou China |
|---|---|
| Brand Name: | GOLGATHA |
| Certification: | CE/ISO |
| Model Number: | GGT – 4028 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | The price is negotiable |
| Packaging Details: | Conventional packing |
| Delivery Time: | 1-30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1-10000 PCS per month |
Product Description
| Tittle: | Kidney Stone Treatment Instrument | Warranty: | 1 Year |
|---|---|---|---|
| Certificate: | CE ISO | Export Markets: | Global |
| Place Of Origin: | Guangdong, China | Color: | Picture |
| High Light: |
medical x ray machine ,
|
||
portable digital x ray machine
Kidney Stone Treatment Instrument shock wave lithotripsy
Product Description
Function:
Extracorporeal shock wave lithotriptor (ESWL) is a non-invasive treatment device of kidney stones (urinary calculus) using an acoustic pulse (extracorporeal shock wave) to break a large stone into smaller pieces that can pass
Although calculus, especially calcium stones are very hard, most of the 20% to 30% that do not pass out of the body on their own can be eliminated without surgery. The process called lithotripsy (from the Greek word for “stone crushing”) breaks into tiny fragments most stones that are less than three-quarters of an inch across.
Repeated shock waves cause the kidney stone to disintegrate into tiny particles. These particles pass easily out of the body in the urine.
The New Generation Lithotripter
• Brand New Shall Design.
• More Visualize Therapy Way
• Optimal Electromagnetic Shockwave Generator
• More User-friendly Localization Logistic
Easier localization method. Transform the complicated localization process to a very easy way, just like using ultrasound machine for exmamination. The patent localization system can complete the calculus localization quickly by microcomputer measurement and display system.
Overhead type Arm Control
• The reflector and localization system work together with the novel arm ,Doctor can adjust the arm to check the patient, just like check the patient by himself.
• Unlike the traditional way of keyboard control, the overhead type arm control method is more intuitive
Multi-angle, Omni directional No blind zone Treatment
• The generator can move up and down, back and forth, rotate and swing.
• The treatment bed can also move up and down, left and right, No dead corner, No blind zone.
Digital Tracking Fast Localization System (Patent of our proprietary intellectual property rights)
• The fast localization system with ultrasound is small and convenient.
• The shockwave generator move along the focal point, while the digital measuring system keeps tracking the calculus.
• The ultrasound probe moves together with the localization system. The doctor can watch the treatment status simultaneously on the ultrasound monitor and decide whether to adjust the focal point at any time, thus realizing high hit rate and high work efficiency.
• Unlike traditional and fussy manual handle localization system, our digital tracking fast localization system is swift and easy.
Shockwave Generator Guarantee System
• Shock wave auto vacuum-pumping system ensures the high efficiency of the shockwave energy.
• Auto circulating water cooling system and generator auto air exhausting system ensure the long service life of shockwave generator.
• Diaphragm rupture auto alarm system minimizes the cost of consumption part.
Specifications
| Reflector | Focal point to reflector center ≥ 130mm |
| Focal point | X axis: ≤± 7mm |
| Y axis: ≤ ± 80mm | |
| Shock wave | Electromagnetic |
| Pulse width: 1μ S | |
| Wave front: 0.5μ S | |
| Operating voltage | 14-18KV |
| he travel range of the therapy bed | Back and forth: ≥ 240mm |
| Right and left: ≥ 240mm | |
| Up and down: ≥ 240mm | |
| The motion of therapy head | Parallel: ≥90mm |
| Rotating angel ≥ 60° and ≥ 36° on different line | |
| Integrative Main Frame and Drawer style Control | |
| Electrical source | 220V |
